  • KENWOOD TS790-E ALL MODE TRANSCEIVER
  • FM DUAL BANDER KENWOOD TM-D700 - APRS
  • HF/VHF/UHF ALLA MODE TRANSCEIVER YAESU F7-857
  • HF/VHF/UHF ALLA MODE QRP TRANSCEIVER YAESU F7-817
  • LDG "Z100" Autotuner Antenna
  • HF/50 MHz iCOM IC-756 100W
  • TRANSCEIVER YEASU FT2800M VHF
  • HF/VHF TRANSCEIVER iCOM IC706MK2
  • GALAXY SATURN



PORTABLE TRANSCEIVER

  • KENWOOD TH-22 VHF
  • KENWOOD TH-28
  • KENWOOD TH-D7E "MOBILE APRS"
  • ALINCO DJ-V5
  • YAESU VX-7
  • POL-MAR DB10 - 10w



icom IC756



















Type: Amateur HF/VHF transceiver

Frequency range: 10-160 m + WARC/6 m

Mode: AM/FM/SSB/CW

RF Power output: 5-100/5-100 W (5-40/5-40 W AM)

Sensitivity: N/A

Selectivity: N/A

Image rejection: N/A

Voltage: 13.8 VDC

Current drain: RX: ? A

TX: Max ? A

Impedance: 50 ohms, 2*SO-239

Dimensions (W*H*D): 340*111*285 mm

Weight: 9.3 Kg

Manufactured: Japan, 1996-2000 (Discontinued)

Other: DSP, Twin RX

IC-756.pdf
Documento Adobe Acrobat 7.9 MB

kenwood TM-D700



















Type: Amateur VHF/UHF transceiver

Frequency range: TX: 144-146 / 430-440 MHz

RX: 118-524 / 800-1300 MHz

Mode: TX: FM/NFM

RX: AM/FM/NFM

RF Power output: Hi: 50/35 W

Mid: 10/10 W

Lo: 5/5 W

Sensitivity: N/A

Selectivity: N/A

Image rejection: N/A

Voltage: 13.8 VDC

Current drain: RX: Max 1 A

TX: Max 11.5 A

Impedance: 50 ohms, N

Dimensions (W*H*D): Body: 140*40*195 mm

Panel: 140*60*34 mm

Weight: Body: 1.2 Kg

Panel: 180 gr

Manufactured: Singapore, 2000-200x

Other: Built-in TNC 1K2/9K6, APRS, DX-info, PBBS. Twin RX

359_TM-D700_user_manual.pdf
Documento Adobe Acrobat 882.4 KB

icom IC-706mkII



















Type: Amateur HF/VHF transceiver

Frequency range: TX: 10-160 m + WARC / 50-54 / 144-146 MHz (Europe)

TX: 10-160 m + WARC / 50-54 / 144-148 MHz (USA)

RX: 0.03-200 MHz all-mode incl WFM

Mode: AM/FM/SSB/CW/RTTY

RF Power output: 100/100/20 W

Sensitivity: N/A

Selectivity: N/A

Image rejection: N/A

Voltage: 13.8 VDC

Current drain:RX: Max 1.8 A

TX: Max 20 A

Impedance: 50 ohms, SO-239 (HF/6 m), SO-239 (2 m)

Dimensions (W*H*D): 167*58*200 mm

Weight: 2.5 Kg

Manufactured: Japan, 1997-19xx (Discontinued)

MANUALE-ICOM-IC-706-MK-II.pdf
Documento Adobe Acrobat 9.0 MB

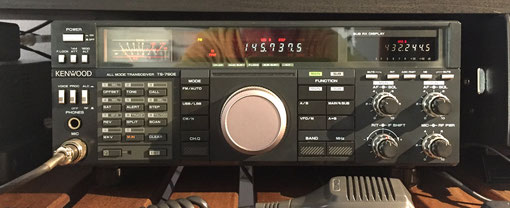

Kenwood TS-790E

SPECIFICATIONS



GENERAL
Type:    Amateur VHF/UHF transceiver
Frequency range:    144-146 / 430-440 MHz (23 cm/10W option)
Tuning steps:    20 / 100 Hz
1 / 5 / 10 / 25 KHz
Mode:    FM/SSB/CW
Memory channels:    30 regular
20 split
2 programmed scan (+1 with 23 cm option)
2 alert (+1 with 23 cm option)
2 call (+1 with 23 cm option)
Power supply:    13.8 VDC +/-15%
Current drain/power consumption:    RX: 2.5 A (no signal)
TX: Max 15 A
Antenna impedance/connector:    50 ohms, 1*SO-239, 1*N-socket (1*N-socket for the 23 cm option)
Dimensions (W*H*D):    330*120*330 mm (13*4.72*13")
Weight:    9.2 Kg (20.2 lbs)
Other features:    Speech processor. Twin RX

RECEIVER SECTION
Receiver system:    IF matrix
Sensitivity:    FM: 0.22 uV (12 dB SINAD)
SSB/CW: 0.16 uV (10 dB S+N/N)
Selectivity:    FM: 12 KHz (-6 dB), 24 KHz (-60 dB)
SSB: 2.1 KHz (-6 dB), 4.8 KHz (-60 dB)
CW: 500 Hz (-6 dB), 2 KHz (-60 dB)
Image rejection:    2 m: 65 dB
70 cm: 60 dB
23 cm: 55 dB (with 23 cm option)
AF output power/speaker:    1.5 W at 10% distortion / 8 ohms
External speaker connector:    3.5 mm, 8 ohms

TRANSMITTER SECTION
RF output power:    FM/CW: 45/40 W
SSB: 35/30 W
Modulation system:    FM: Reactance modulation
SSB: Balanced modulation
Max FM deviation:    ±5 KHz
Spurious emissions:    2 m/70 cm: Less than -60 dB
23 cm: Less than -50 dB (with 23 cm option)
Microphone connector/impedance:    8-pin / 600 ohms

Manuale Kenwood TS790-E
TS790_user.pdf
Documento Adobe Acrobat 2.0 MB
